Tunneling

Accurate to the millimeter

Tunnels

One of our expertise

Ballast Nedam deploys a lot of expertise daily, tunnel construction included. Tunnels are indispensable in our infrastructure. The Netherlands alone has many tunnelled waterway crossings so that traffic and shipping can continue undisturbed. Various types of tunnels have been built in the Netherlands, of which the immersed tunnel is the most prominent.

The need for space in large cities has also led to more and more buildings underground and underground infrastructure. In recent years, in addition to the crossings of waterways, tunnelling solutions are increasingly used to make better use of scarce aboveground space and improve the living environment.


Ballast Nedam has built up years of experience by working on many tunnelling projects. The A24 Blankenburgverbinding in the busy port area of Rotterdam and the A9 Gaasperdammertunnel, the longest land tunnel in the Netherlands in Amsterdam, both DBFM projects, are the most recent examples. Through this knowledge and experience, we can realise every type of tunnel from start to finish. We have the knowledge and specialists in-house to analyse individual situations accurately and implement the most suitable tunnel solution to the millimetre.

Which tunnels do we realise?

There are many variants to be found in tunnel types, of which three types of tunnels are the best known within our expertise:

1. Cut-and-cover and land tunnels

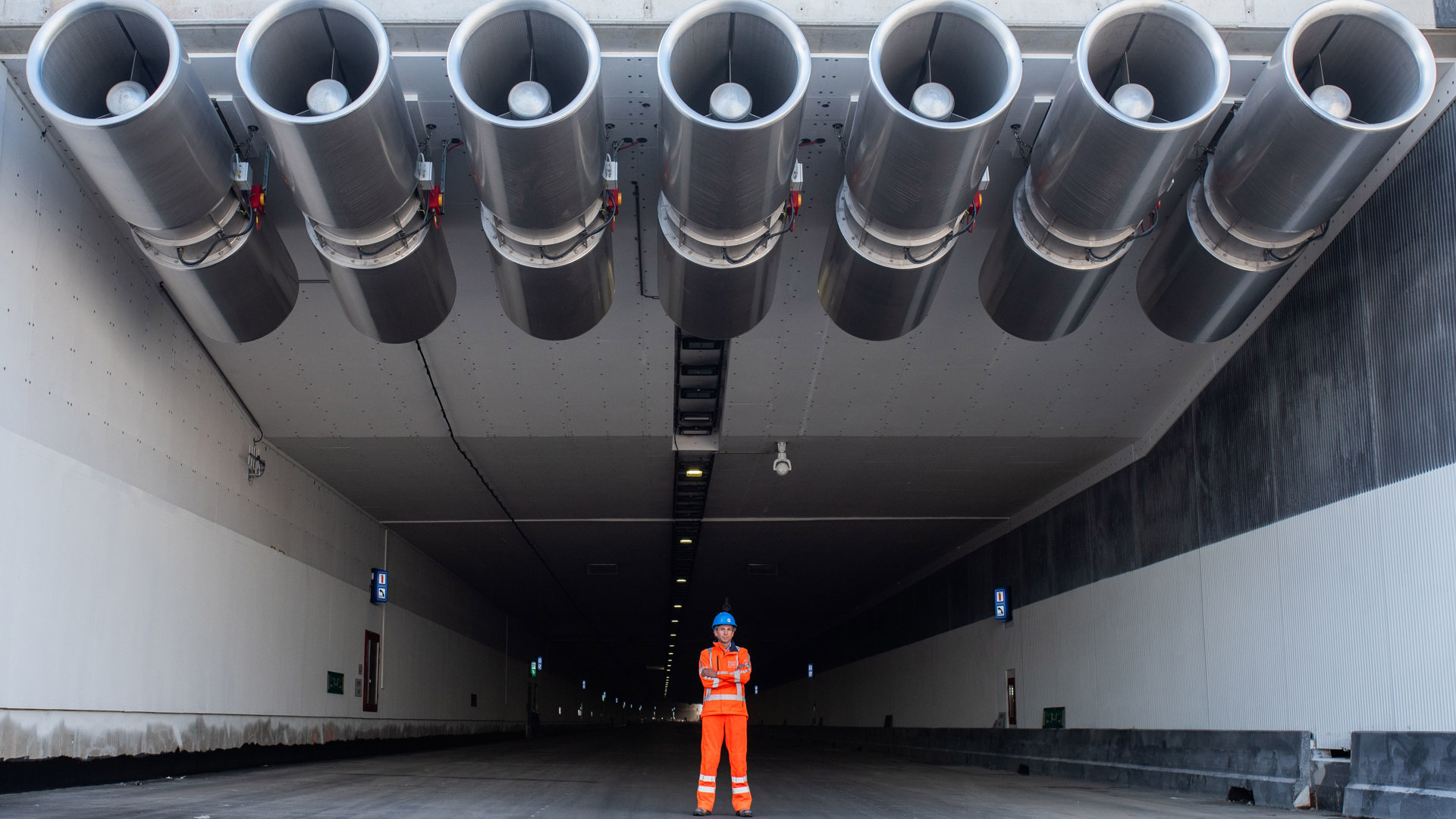

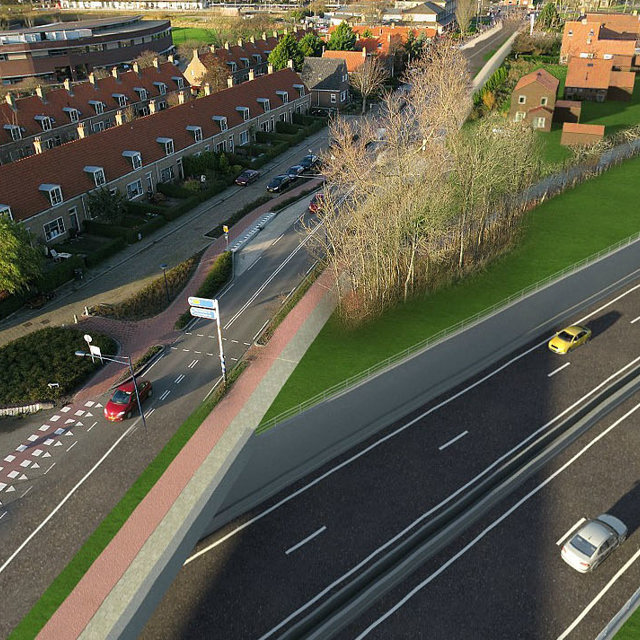

Cut-and-cover tunnels are a traditional method of tunnel construction mainly used in urban areas. Due to the soft soil combined with groundwater in the Netherlands, sheet piling or diaphragm walls are often required first, creating a construction pit. The ground is then excavated, which often requires heavy stamps between the sheet piling to prevent deformation and the risk of subsidence in the surrounding area. An underwater concrete floor anchored with anchor piles is installed, after which the construction pit can be dried. We eventually realise the tunnel within the dry construction pit. The Holland Tunnel, part of the Blankenburg connection, is a good example of a cut-and-cover tunnel.
For inland tunnels, we can often avoid going deep underground, which allows us to keep clear of groundwater. The tunnel is then built from ground level, as it were.

2. Tunnel boring machine technology (TBM)
TBM construction has the great advantage of moving under the ground like a mole with great precision without causing major inconvenience above-ground. This is very practical in inner-city spaces, for example. This tunnelling method is also used for the passage of rocky mountain massifs. Using this method, we drill through rock, soft soil and sandy soil. We are proud of the Gotthard Base Tunnel through the Alps in Switzerland, which our organisation unit Heitkamp Construction Swiss completed in 2016. With two single tunnel tubes of 57.09 kilometres, the tunnel is the longest rail tunnel in the world. The Heitkamp Construction Swiss team is specialised in this field and is independently capable of constructing TBM tunnels.

3. Immersed tunnels

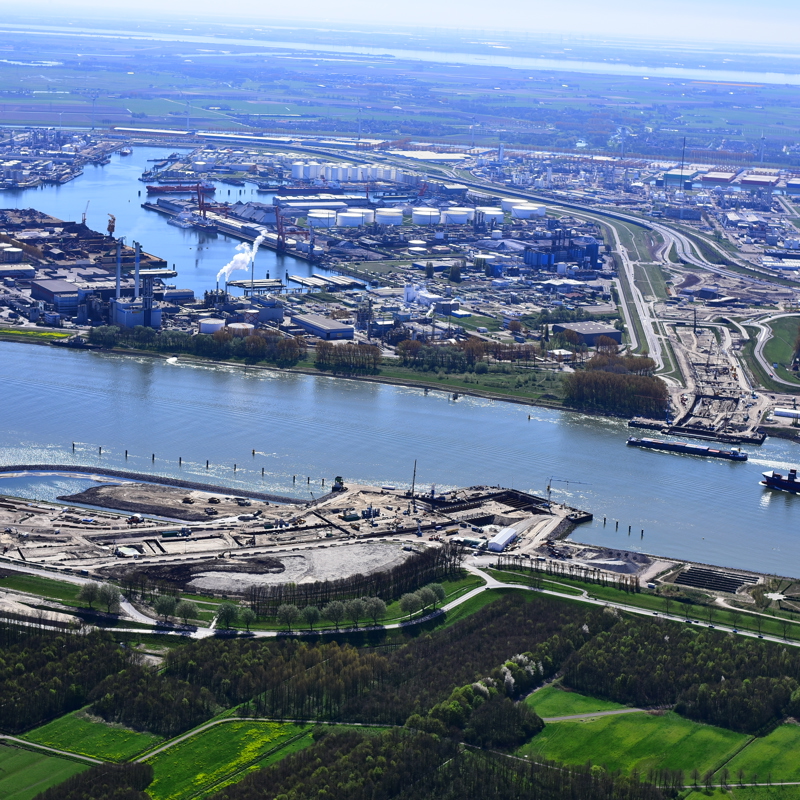

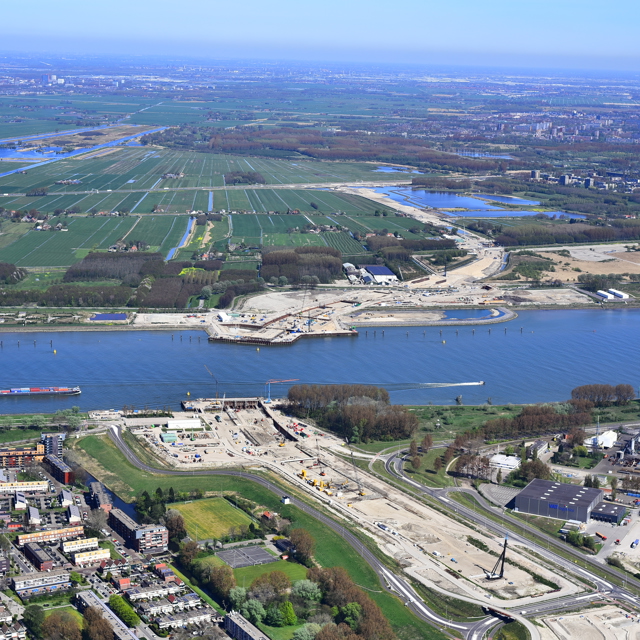

Immersed tunnels are often used at waterway junctions. We build concrete tunnel elements in a construction dock. The elements are temporarily closed on both sides with bulkheads, floated and transported to the immersion location. At the immersion location, a trench is dredged in the riverbed. The tunnel elements are immersed one by one in a controlled manner. This is precision work that needs to be done very carefully. Once immersed and in place, rubber GINA gaskets form the watertight connection between the tunnel elements and the temporary bulkheads are removed. This tunnelling method is used for the Maasdelta tunnel within the A24 Blankenburgverbinding, crossing the Nieuwe Waterweg in Rotterdam.

Safety #1

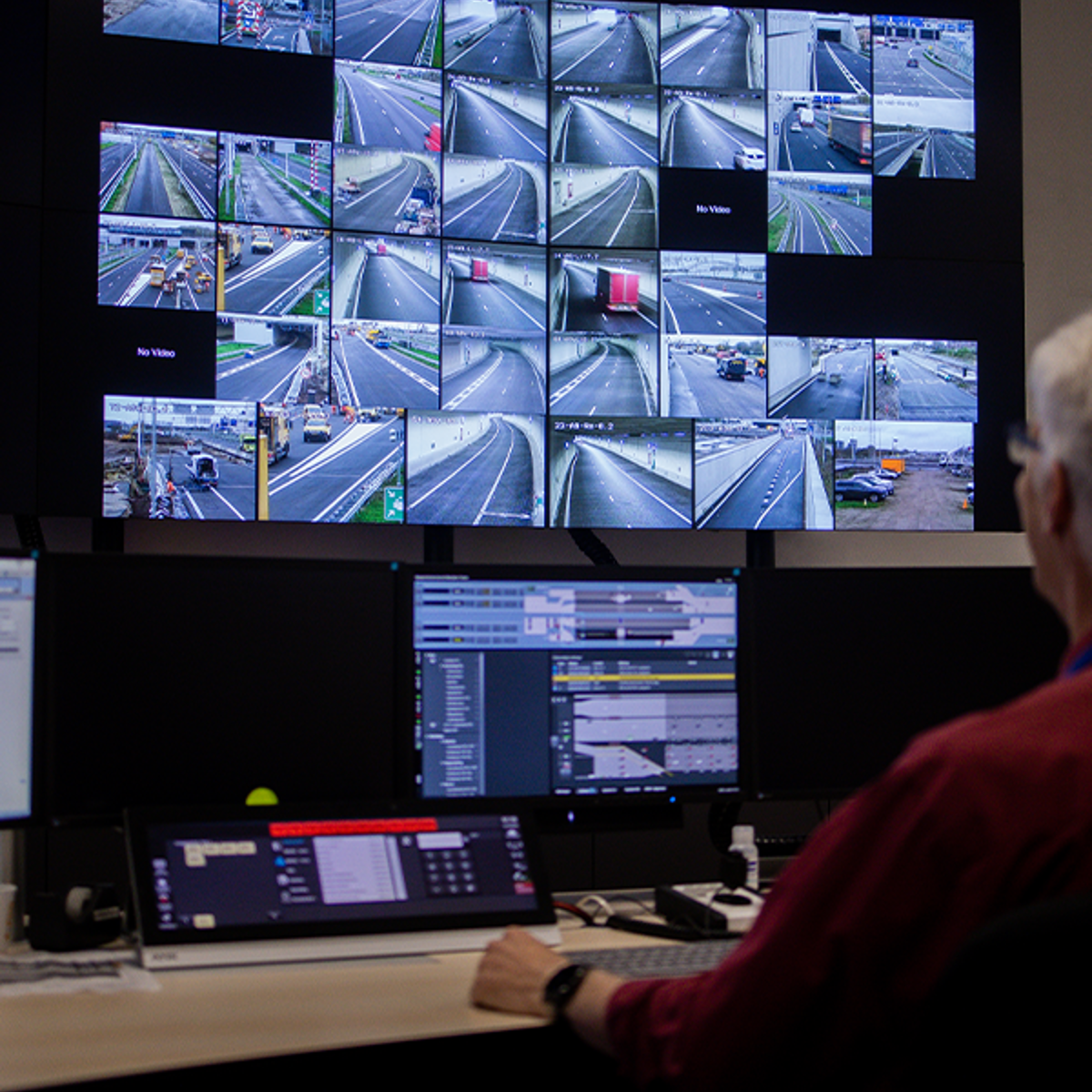

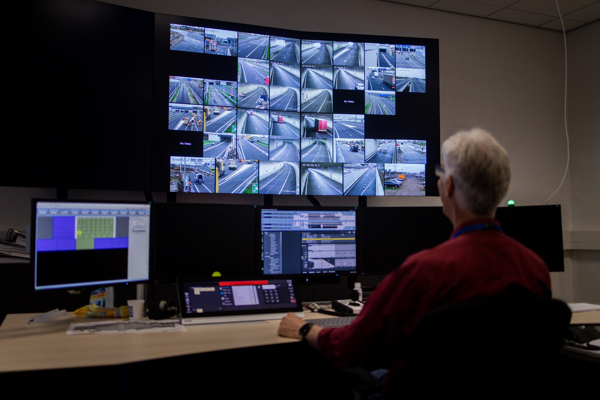

Because the safety of road users is the highest priority, a standard safety level for tunnels has been devised in collaboration with Rijkswaterstaat and several construction and installation parties. If a vehicle comes to a standstill, it is immediately signalled by the tunnel’s technical installations. When the cameras detect the vehicle, the system acts immediately and determines, based on analyses, whether or not to implement speed-limiting measures or even close the tunnel.

To further improve safety, we have installed a self-learning system in the A9 Gaasperdammer tunnel, which keeps the sensors continuously optimising themselves. “All systems must behave correctly in all cases,” says test manager Michel van Corven. Testing all possible combinations of detections and behaviour can take years because millions of combinations are possible. Therefore, rather than testing all combinations, we test all individual sensors. “If you know that the sensor works and that the way it operates is always the same, you can select a sample and draw conclusions from it.”

Our people are our strength

Each tunnel requires brainpower to analyse the often unique situations. Deep knowledge and experience ensure that we can always offer unique solutions. That is why we have the best people in-house. Executive Director Martijn Smitt, who specialises in immersed tunnels, has been involved in numerous multidisciplinary, international construction projects for over two decades. As one of the few in the world, he knows how to combine the complex immersed technology with the dynamics that come to the immersed process. He explains: “Because of the high buoyancy, we can float tunnel elements into place. Pontoons are attached to the tunnel element, and then we use Archimedes' Principle. Although the weight is very low, the mass varies between 25,000 and 60,000 tons and is comparable to an American aircraft carrier. Controlling that amount of mass that is moving dynamically underwater is complicated. Depending on the location, each immersed tunnel has, for example, to deal with different currents, weather conditions, tides, waves and salinity, and sometimes we even have to take the influence of seiches into account. Managing the mass combined with these complex conditions requires complex calculations and smart techniques.”
At Ballast Nedam, our people have the knowledge and experience to analyse specific situations and determine what is required to install the tunnel elements to the millimetre-precise.

“The salinity of the water has an enormous influence,” Martijn explains. “Freshwater has a density of 1000 kilograms per cubic meter of water, making a thousand litres of freshwater weigh exactly one thousand kilograms. But saltwater is heavier and varies between 1021 and a maximum of 1027,5 kilograms per cubic meter. If a floating tunnel element protrudes about 20 centimetres above water during transport in freshwater, then that is about double in saltwater. I can still remember the tunnel elements of the Burgemeester Thomassen tunnel, built in a freshwater area, slowly emerging from the water on their way out at sea. In such a case, to get the tunnel element down again, we have to add the same amount of extra volumetric weight of water in ballast tanks. When the tunnel element is in place, the ballast water in the ballast tanks is replaced by a layer of ballast concrete on the floor of the tunnel and soil on the roof.”

Our tunneling projects

We have already realised multiple large projects in the field of tunnelling. A selection from our portfolio:

Smart logistics

The realisation of large infrastructural projects takes some time. How do we realise such immense and complex infrastructure projects, where traffic is hindered as little as possible? The A9 Gaasperdammer tunnel is the longest land tunnel in the Netherlands. We were able to build it on behalf of Rijkswaterstaat by handling the phasing of the project very smartly. This cut-and-cover tunnel is located in the middle of the Randstad and crosses the busy Amsterdam Southeast. Within this project, Ballast Nedam has shifted part of the road within the IXAS construction consortium, built a tunnel section, and then moved the road back again. Then we could shift the second part of the highway and rebuild the other part of the tunnel.

This smart construction ensured that we won the project and then successfully executed it. Traffic could continue on its way while we broke Dutch records with the scope of this project. The collaboration with the client, Rijkswaterstaat, resulted in the timely and error-free commissioning of the tunnel.
