Sustainable road construction in Delft

Where science and practice meet

Renewal Noordeindseweg Delft

Large in innovation and complexity, small in size: that is the Noordeindseweg project in Delft. Ballast Nedam is replacing 800 metres of asphalt in a circular and sustainable manner. We are working in a construction team with the municipality of Delft.

  • 800 metres asphalt
  • 90 per cent reuse
  • 1 construction team bouwteam

Foam bitumen as a solution

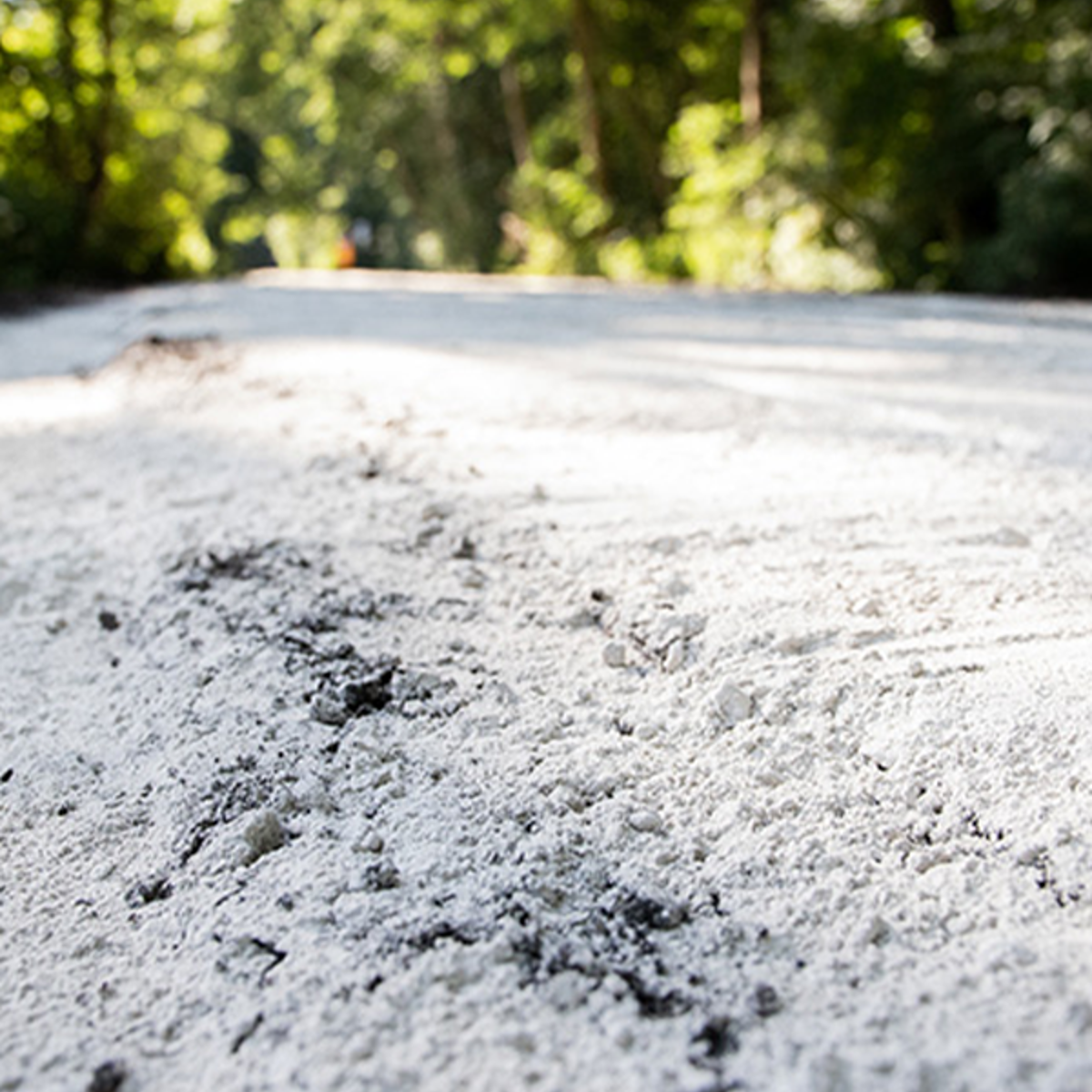

The old Noordeindseweg has suffered many cracks and irregularities because of the sensitive peat soil. Foam bitumen stabilisation therefore offers a solution: we mix the old asphalt road, adding foam bitumen and the durable cement to the milling material. This solution can move more easily with deformations, without causing the construction layer to crack. Ideal for road constructions on peat substrates. This is how we achieve a flexible, sustainable and load-bearing foundation.

Cooperation with TNO

Can we use geopolymer cement as a sustainable cement substitute in foam stabilisation? The research organisation TNO has investigated this question. From their literature research, they concluded that geopolymer cement is not yet suitable for an in-situ dry application and therefore the choice fell on the white, sustainable cement product Eco2cem.

Test pieces and mixtures

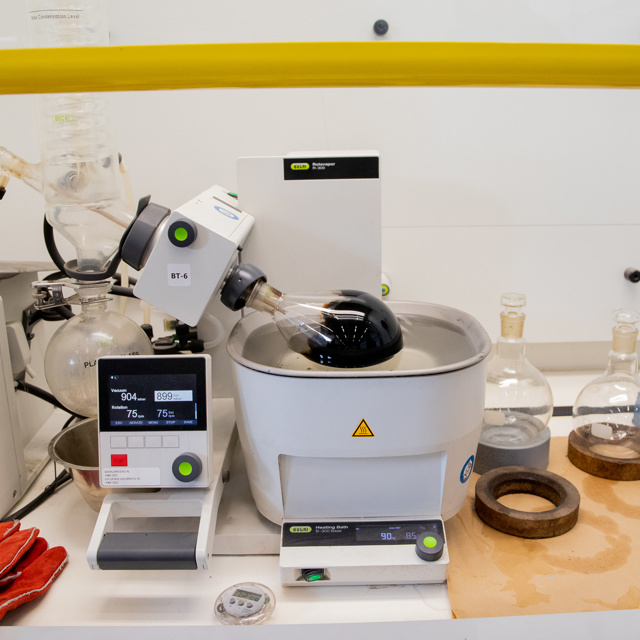

On the Noordeindseweg, we reuse as many construction materials as possible. But: how does the most suitable mixture come about? In the laboratory of DIBEC Materiaalkunde we composed 5 possible mixtures that differ in the amount of bitumen to be added and different types of cement. After making and examining the samples, the most suitable mixture emerged: 60% asphalt granulate and 40% slag granulate, plus 2.5% bitumen and 1% ground granulated blast furnace slag: the sustainable cement Eco2cem proposed by TNO. This chosen asphalt mixture meets the required paving properties and provides the maximum EIP reduction compared to the standard mixture.

Testing, testing, testing

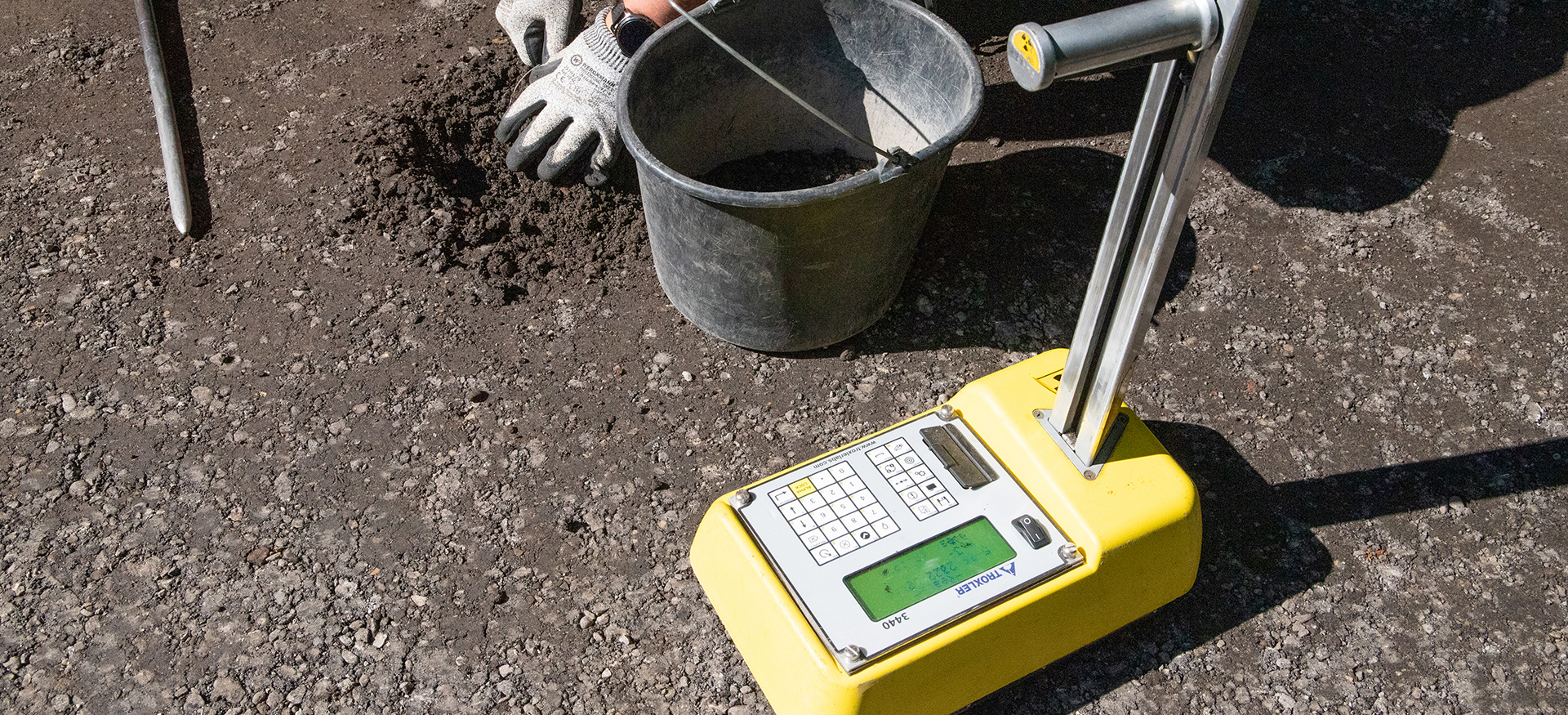

With data and technology, we ensure that the renewed road has the highest possible quality. Drill core investigations showed that the existing bonded slag foundation contains a steel reinforcement, after which we used radar measurements to determine at what depth this reinforcement lies. We processed this data into a detailed map to prevent damage to the chisels during milling.

A truly sustainable solution

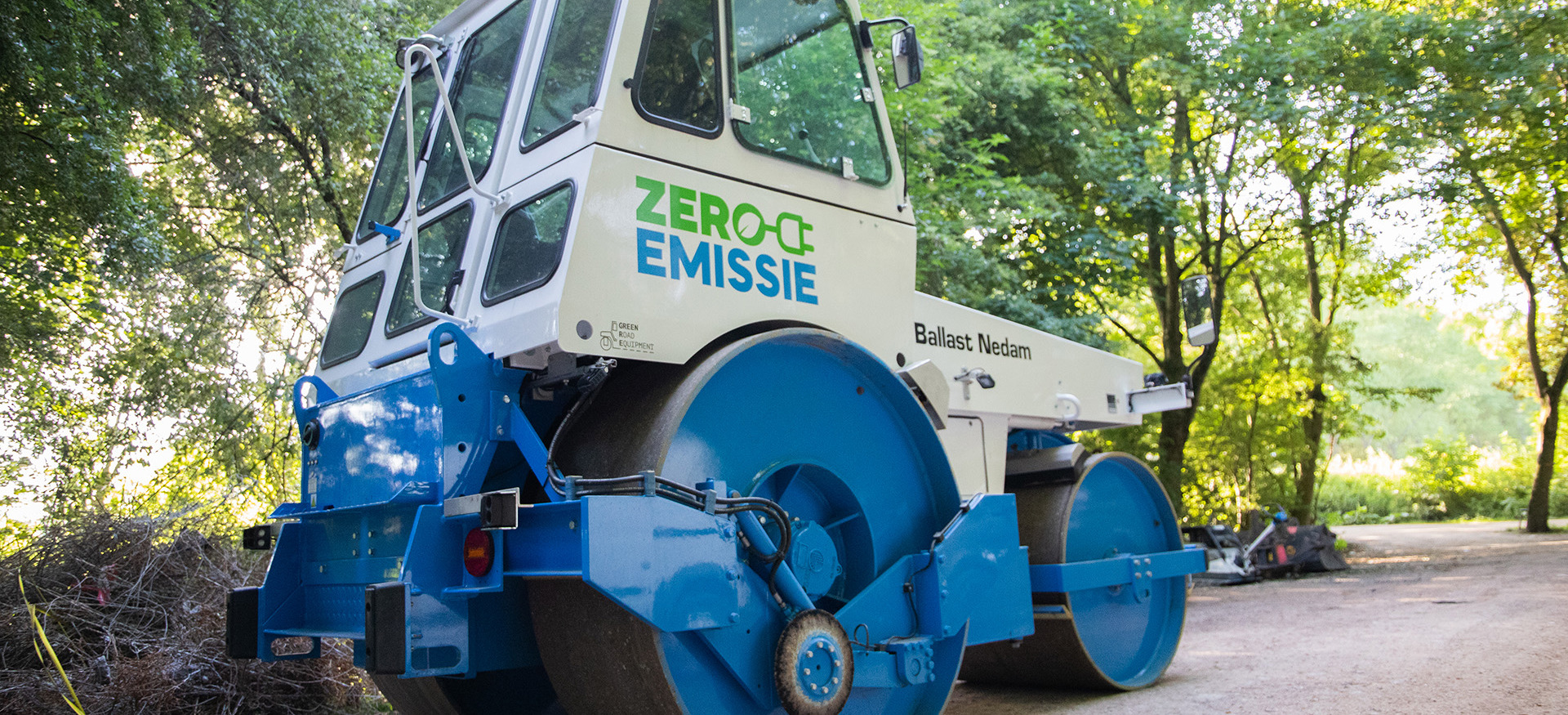

Our sustainable solutions go beyond circularity. We carry out some of the road works using electrical equipment and green energy. In addition, we are making the verges more biodiverse and the traffic signs bio-based.

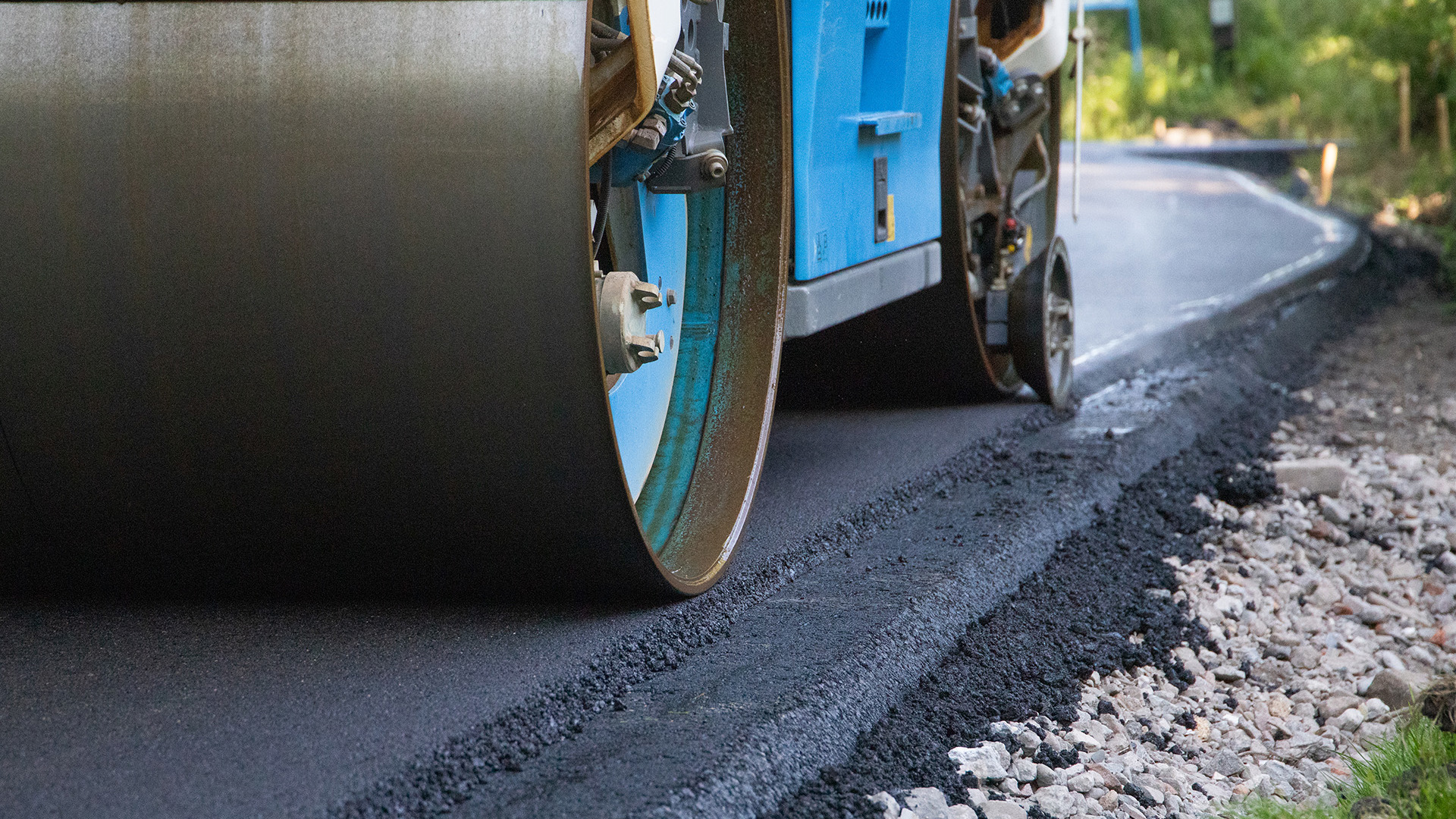

The result: a green and safe road. Once our road construction specialists have completed the work, by the summer of 2022 the bumpy, outdated road will have been transformed into a smooth road that will last for years to come.
